Gas · Continuous Flow Hot Water Systems
Not designed for commercial use
12 Year Heat Exchanger
3 Years Parts and Labour
1 Year Heat Exchanger
1 Year Parts and Labour
Save space with a small footprint mounted on your wall
They heat water as you need it, so you will never run out of hot water
Controllers can be installed to accurately deliver the required water temperature
You may need to upgrade your gas line which can add to your upfront costs
Can lose pressure when more than the normal amount of outlets are in use
Save space with a small footprint mounted on your wall
They heat water as you need it, so you will never run out of hot water
Controllers can be installed to accurately deliver the required water temperature
You may need to upgrade your gas line which can add to your upfront costs
Can lose pressure when more than the normal amount of outlets are in use
Always use a licensed plumber when installing a hot water system.
Gas · Continuous Flow Hot Water Systems

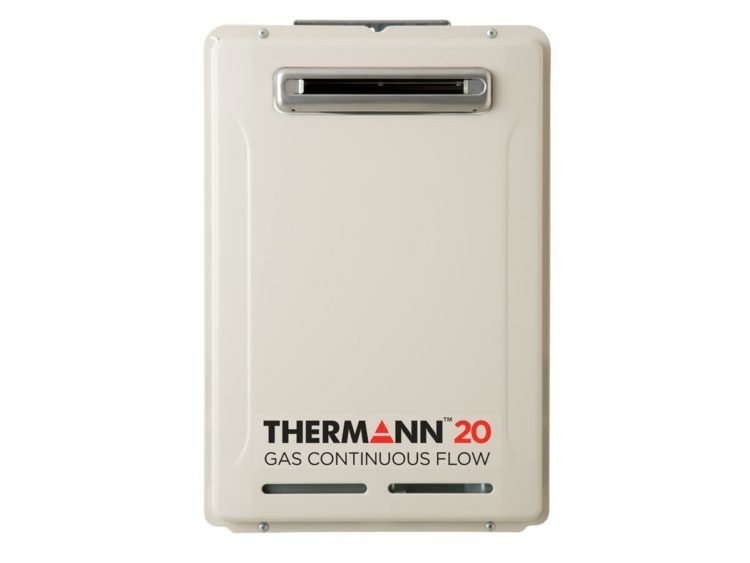

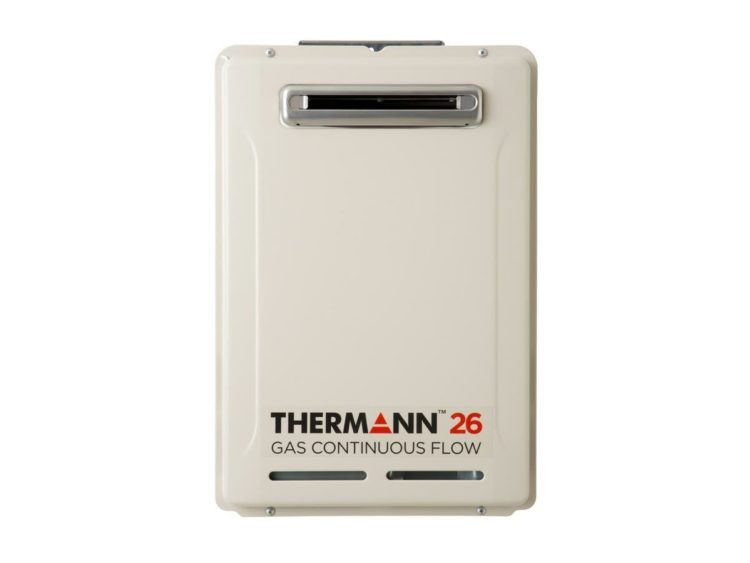

The Thermann 6 star, energy efficient Gas Continuous Flow unit ensures you will have enough hot water, when you need it. With a 12 year warranty, you can rest assured you are covered for the life of the unit, and optional universal controllers ensure you always have precise control of your hot water temperature settings. The Continuous Flow units are available in both NG and LPG to suit your gas type.
1. A hot water tap is turned on
2. Water enters the heater
3. The water flow sensor detects the water flow
4. The computer automatically ignites the burner
5. Water circulates through the heat exchanger
6. The heat exchanger heats the water to the designated temperature
7. When the tap is turned off, the unit shuts down
| Features | 16L | 20L | 26L |
|---|---|---|---|
| No. Bathrooms | 1 | 1 – 2 | 2 – 3 |
| Energy Rating 50°C (stars) | 6.3 | 6.5 | 6.1 |
| Energy Rating 60°C (stars) | 6.0 | 6.0 | 6.0 |
| Capacity at 25°C rise (L/min) | 16 | 20 | 26 |
| Capacity at 40°C rise (L/min) | 10 | 12.5 | 16.25 |
| Gas Type Available | NG, LPG | NG, LPG | NG, LPG |
| Measurements | 16L | 20L | 26L |
|---|---|---|---|
| Nominal hourly gas consumption (MJ/h) | 125 | 150 | 200 |
| Test point pressure NG (kPa) | 0.56 | 0.8 | 0.8 |
| Test point pressure LPG (kPa) | 0.91 | 1.4 | 1.5 |
| Minimum water pressure (kPa) | 60 | 90 | 110 |
| Maximum water pressure (kPa) | 1200 | 1200 | 1200 |
| Minimum gas inlet pressure NG (kPa) | 1.13 | 1.13 | 1.13 |
| Minimum gas inlet pressure LPG (kPa) | 2.75 | 2.75 | 2.75 |
| Maximum gas inlet pressure NG (kPa) | 5.0 | 5.0 | 5.0 |
| Maximum gas inlet pressure LPG (kPa) | 7.0 | 7.0 | 7.0 |
| Minimum flow rate ignition (L/min) | 2.7 | 2.7 | 2.7 |
| Input voltage single phase 50HZ (v) | 240 | 240 | 240 |
| Maximum output current (A) | 0.39 | 0.45 | 0.46 |
| Inlet gas connection male thread | R3/4” (20mm) | R3/4” (20mm) | R3/4” (20mm) |
| Cold water connection male thread | R3/4” (20mm) | R3/4” (20mm) | R3/4” (20mm) |
| Relief valve pressure setting (kPa) | 1400 | 1400 | 1400 |
| Weight dry (kg) | 15 | 15 | 16 |

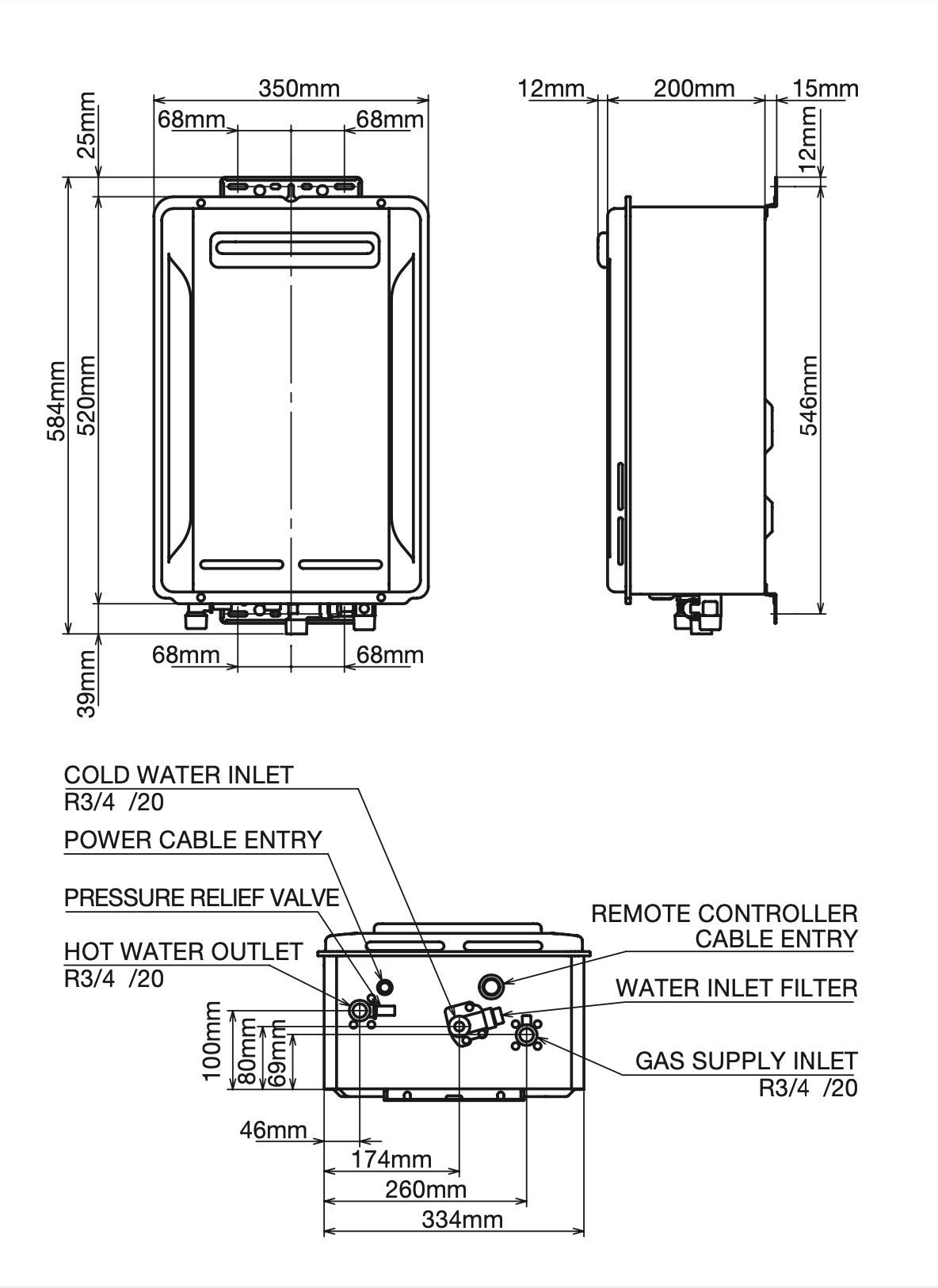

| Dimensions (DxWxH mm) | 200x350x520 | 200x350x520 | 200x350x520 |
| Product code | Number Of People | Delivery Capacity (At 25 Deg C Rise) | Gas Type | Temperature Setting | Gas Consumption |
|---|---|---|---|---|---|
| 9505070 | 1-3 | 16L/min | Natural | 50 deg C | 125 MJ/h |
| 9505078 | 4-6 | 25L/mon | Natural | 50 deg C | 200 MJ/h |
| 9505071 | 1-3 | 16L/min | Natural | 60 deg C | 125 MJ/h |
| 9505079 | 4-6 | 26L/min | Natural | 60 deg C | 200 MJ/h |
| 9505072 | - | - | LPG | 50 deg C | 125 MJ/h |
| 9505080 | 4-6 | 26L/min | LPG | 50 deg C | 200 MJ/h |
| 9505073 | 1-3 | 16L/mon | LPG | 60 deg C | 125 MJ/h |
| 9505081 | 4-6 | 26L/min | LPG | 60 deg C | 200 MJ/h |
| 9505074 | 2-4 | 20L/min | Natural | 50 deg C | 158 MJ/h |
| 9505075 | 2-4 | 20L/min | Natural | 60 deg C | 158 MJ/h |
| 9505076 | 2-4 | 20L/min | LPG | 50 deg C | 158 MJ/h |
| 9505077 | 2-4 | 20L/min | LPG | 60 deg C | 158 MJ/h |
