Solar · Solar Hot Water Systems
Not designed for commercial use
15 Year Solar Tubes
12 Year Heat Exchanger
10 Year Tank
1 Year Parts and Labour
15 Year Solar Tubes
1 Year Heat Exchanger
3 Year Tank
1 Year Parts and Labour
15 Year Solar Tubes
3 Year Tank
1 Year Heat Exchanger
1 Year Parts and Labour
Save space with small footprint mounted on your wall
They heat water as you need it, so you will never run out of hot water
Controllers can be installed to accurately deliver required water temperature
Higher up front cost for equipment and installation
Less efficient in winter
Tubes are more effective when installed on a north facing roof to maximise the efficiency of
the sun
Save space with small footprint mounted on your wall
They heat water as you need it, so you will never run out of hot water
Controllers can be installed to accurately deliver required water temperature
Higher up front cost for equipment and installation
Less efficient in winter
Tubes are more effective when installed on a north facing roof to maximise the efficiency of the
sun
Always use a licensed plumber when installing a hot water system.
Solar · Solar Hot Water Systems

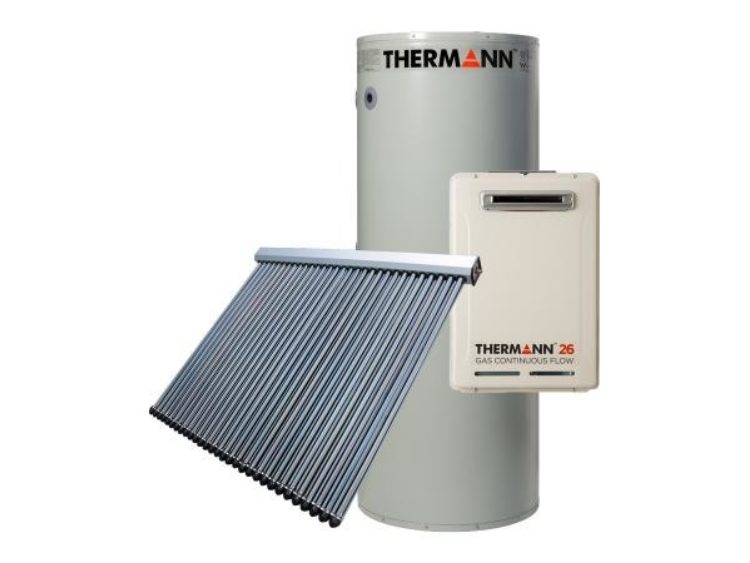

Thermann Evacuated Tube Solar gas boosted hot water systems offer the best of both worlds. While the tubes harness the suns energy to heat your water, you also have the confidence of an energy efficient gas continuous flow hot water system to provide back up if needed. You'll not only have peace of mind, you'll also reduce your running costs.
Step 1
The sunlight strikes the dark absorber coating inside the evacuated tube.
Step 2
The heat pipe transfers the heat up to the copper header pipe location in the insulated
manifold box.
Step 3
A circulator moves water from the storage tank to the copper pipe warming the water. The
solar heated water is then pushed down into the storage tank for use. Anti-frost is built
in to the Thermann system to
ensure solar hot water can be provided even in cold regions.
When it comes to lowering your power bills, Thermann is the right investment choice for the longer term. When paired with the solar tube components, it provides lower running costs, making it the smarter, more sustainable and affordable alternative to the traditional systems. It's also better for the environment. In times of high sun exposure, the system will use 100% of its energy from the sun, using almost 0 mains electricity.

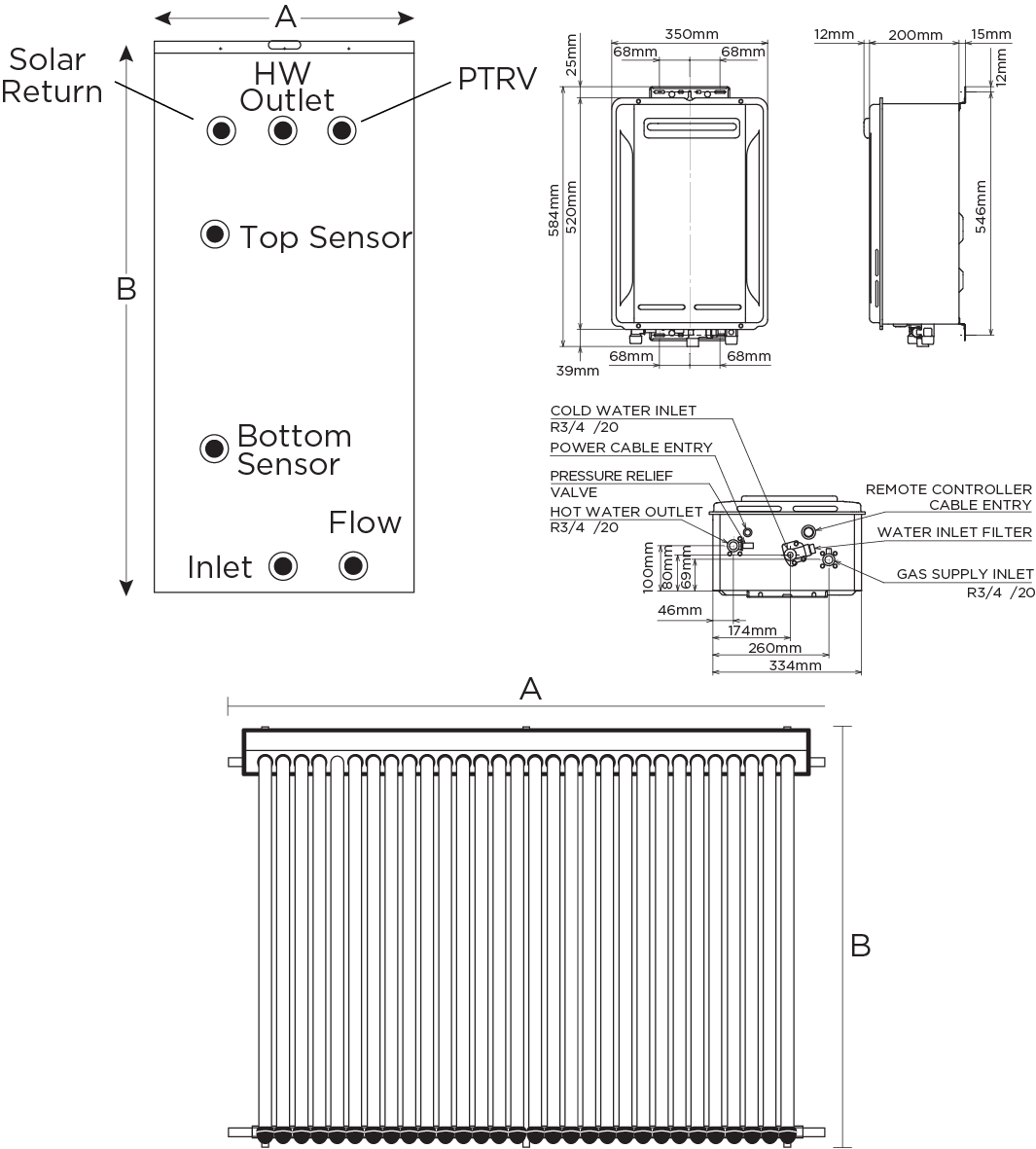

| Measurements (mm) | 250L GAS | 315L GAS | 400L GAS |
|---|---|---|---|
| Tank Diameter (A) | 623 | 624 | 712 |
| Tank Height (B) | 1444 | 1762 | 1703 |
| HW Outlet | 1217 | 1535 | 1452 |
| PTRV Port | 1217 | 1535 | 1452 |
| Solar Return | 1217 | 1535 | 1452 |
| Top Sensor Port | 997 | 1263 | 1215 |
| Bottom Sensor | 463 | 555 | 561 |
| Solar Flow | 201 | 201 | 226 |
| Cold Water Inlet | 201 | 201 | 226 |
| Dry Weight (kg) | 71 | 92 | 116 |
| Measurements (mm) | ||
|---|---|---|
| Collector | 22 Tubes | 30 Tubes |
| Width (A) | 1636 | 2196 |
| Length (B) | 2005 | 2005 |
| W/O Tubes (weight) | 80.7kg | 105.7kg |
| Product code | Number of Tubes | Capacity | Gas Boost |
|---|---|---|---|
| 1360252 | 30 | 315L | 26L NG |
| 1360244 | 22 | 250L | 26L NG |
| 1360249 | 30 | 315L | 26L LPG |
| 1360242 | 22 | 250L | 26L LPG |
| 1360255 | 44 | 400L | 26L NG |
| 1360257 | 44 | 400L | 26L LPG |
