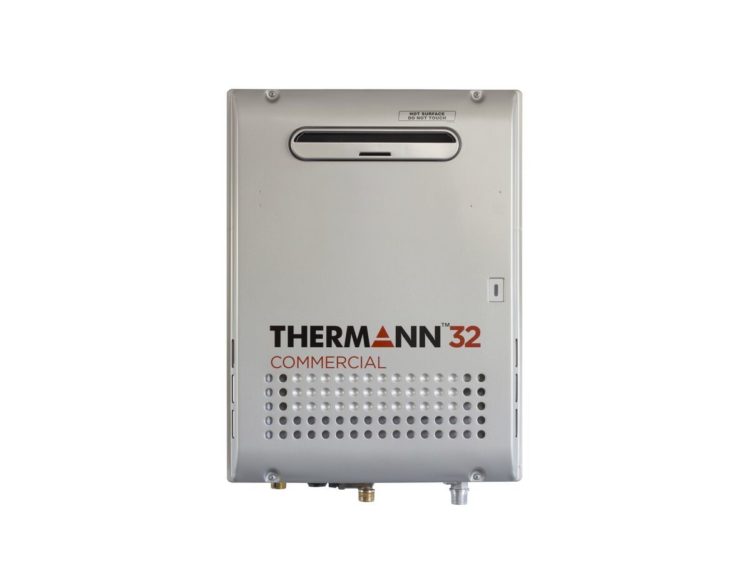

• Thermann Commercial Continuous Flow Hot Water Unit External 32ltr

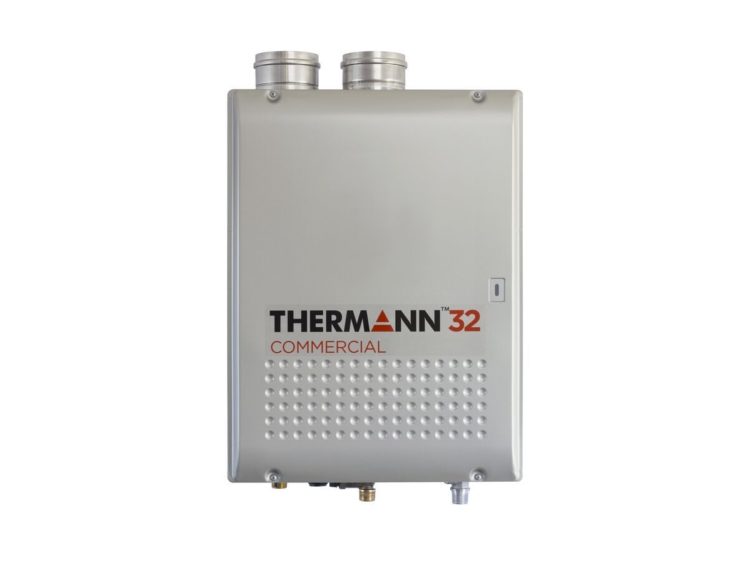

  • Thermann Commercial Continuous Flow Hot Water Unit Internal 32ltr
Arrow left
Arrow right

  • Commercial 32L Continuous Flow

    Gas · Continuous Flow Hot Water Systems

    Key Specifications

    Suitable for
    Commercial use
    Manifold Options
    Site Mounted and Factory Mounted

    • Warranty Information
      Domestic Warranty

      12 Year Heat Exchanger
      3 Years Parts and Labour


      Domestic Warranty on a timed recirculation system

      5 Year Heat Exchanger
      2 Year Parts and Labour


      Commercial

      5 Year Heat Exchanger
      2 Year Parts and Labour

    • Considerations
      Pros

      Thermann Technical Support

      Free sizing service available

      Commercial-grade components

      Able to be manifolded together

      Free commissioning service upon request

      Ideal for ring mains

      Cons

      May require an upgraded gas line

      Condensing units require a condensation drain

    Downloads

    Thermann Commercial Brochure

    Always use a licensed plumber when installing a hot water system.

    If your businesses needs above average volumes of hot water, our 32L Commercial Condensing Gas Continuous Unit is a great option. These units incorporate larger, more robust heat exchangers for high performance and long life. The innovative condensing technology reduces wasted energy by pre-heating the water using heat from the exhaust gases, making them 15% more efficient than conventional gas continuous units. With a 5-year warranty on the heat exchanger and 2-year warranty on heater parts and labour, the 32L will reliably deliver all the hot water you need.

    • Japanese technology and manufacture
    • Commercial-grade heat exchanger
    • Low NOx burner provides improved emissions
    • Commercial-grade components for tough durability
    • Available in indoor and outdoor models
    • Units are linkable so you can scale output

      How it works

      1. A hot water tap is turned on

      2. Water enters the heater

      3. The water flow sensor detects the water flow

      4. The computer automatically ignites the burner

      5. Water circulates through the heat exchangers

      6. The heat exchanger heats the water to the designated temperature

      7. When the tap is turned off, the unit shuts down

      C7 Continuos Flow Systems GIF

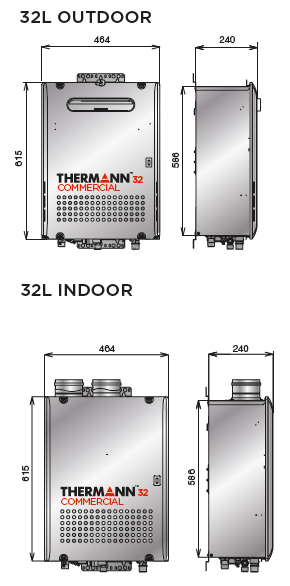

    • 32ltr Continuous Flow Commercial line drawing
      Swipe
      Model Dimensions H x W x D (mm)
      32L Indoor 615 X 464 X 240
      32 Outdoor 615 X 464 X 240
      Swipe
    • Product code Model Capacity L/min @ 25oC rise Thermal Efficiency Gas Consumption
      9507244 - 32 96.4% 217 MJ/h
      9507243 - 32 96.4% 217 MJ/h
      9507241 - 32 96.4% 217 MJ/h
      9507242 - 32 96.4% 217 MJ/h
      Swipe
