Gas · Continuous Flow Hot Water Systems
12 Year Heat Exchanger
3 Years Parts and
Labour
5 Year Heat Exchanger
2 Year Parts and
Labour
5 Year Heat Exchanger
2 Year Parts and
Labour
Thermann Technical Support
Free sizing service available
Commercial-grade components
Able to be manifolded together
Free commissioning service upon request
Ideal for ring mains
May require an upgraded gas line
Condensing units require a condensation drain
50L models require a 25mm water line
Thermann Technical Support
Free sizing service available
Commercial-grade components
Able to be manifolded together
Free commissioning service upon request
Ideal for ring mains
May require an upgraded gas line
Condensing units require a condensation drain
50L models require a 25mm water line
Always use a licensed plumber when installing a hot water system.
Gas · Continuous Flow Hot Water Systems

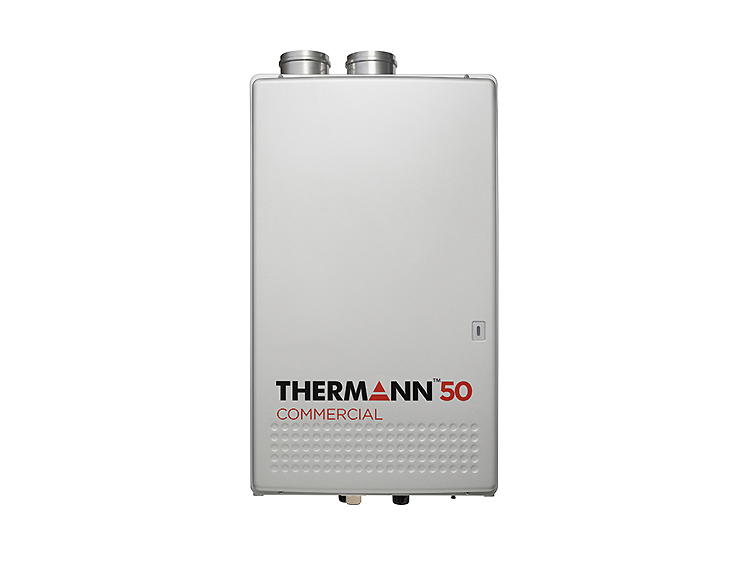

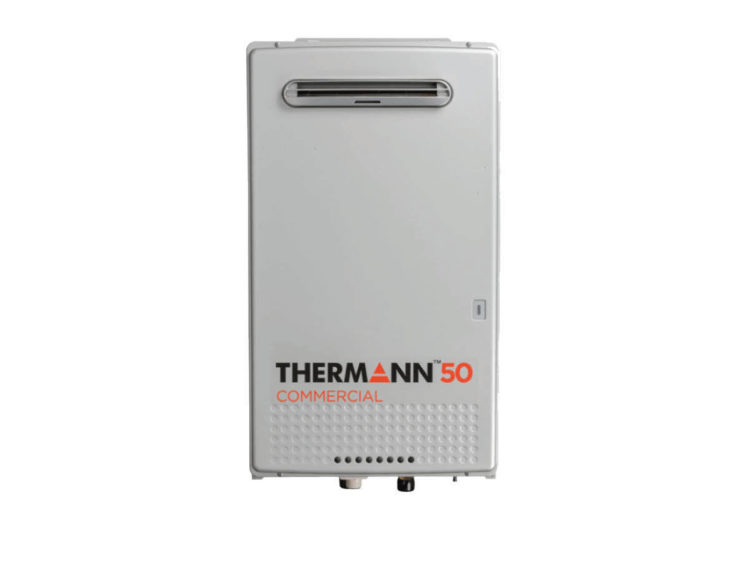

Designed to handle long periods of continual use, our 50L Commercial condensing gas continuous flow unit is ideal for businesses that need high volumes of hot water delivered efficiently. These units incorporate larger, more robust heat exchangers for high performance and long life. The innovative condensing technology reduces wasted energy by pre-heating the water using heat from the exhaust gases, making them 15% more efficient than conventional gas continuous units. With a 5-year warranty on the heat exchanger and 2 year warranty on heater parts and labour, the 50L will reliably deliver all the hot water you need.
The Thermann 50L Commercial condensing gas continuous flow unit is the largest in the Australian market.

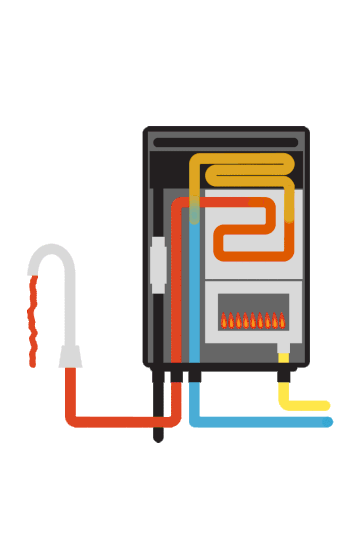

1. A hot water tap is turned on
2. Water enters the heater
3. The water flow sensor detects the water
flow
4. The computer automatically ignites the
burner
5. Water circulates through the heat
exchangers
6. The heat exchanger heats the water to the
designated temperature
7. When the tap is turned off, the unit shuts
down

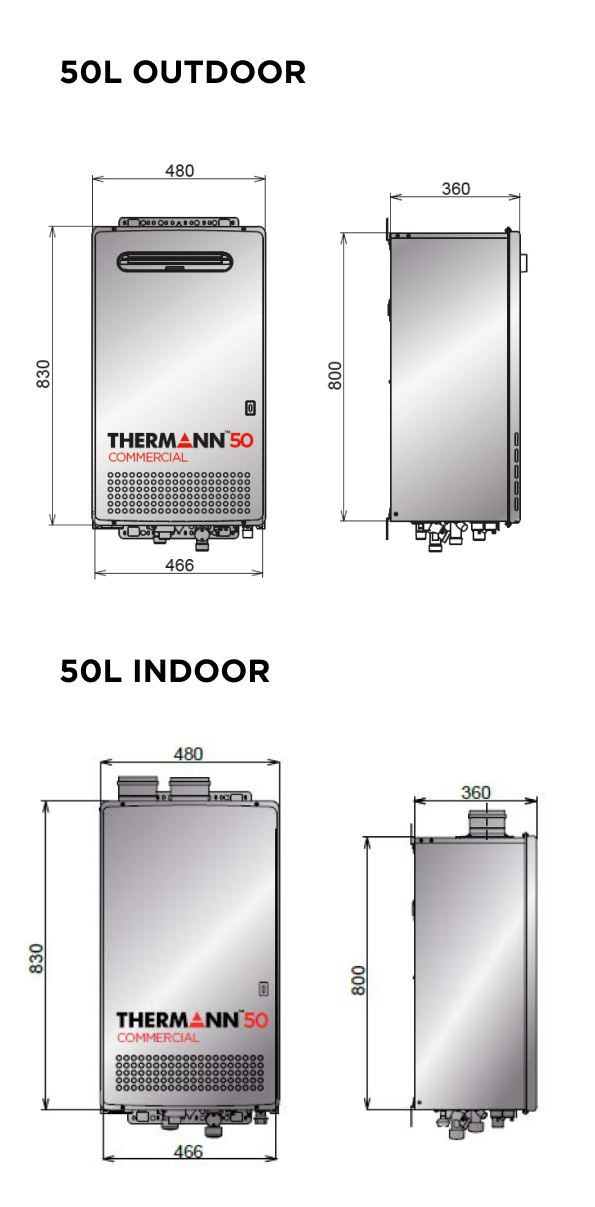

| Model | Dimensions H x W x D (mm) |
|---|---|
| 50L Outdoor | 830 x 480 x 370 |
| 50L Indoor | 830 x 480 x 370 |
| Product code | Model | Capacity L/min @ 25oC rise | Thermal Efficiency | Gas Consumption |
|---|---|---|---|---|
| 1307010 | N/G - Outdoor | 50 | 95% | 328 MJ/h |
| 1307011 | LPG - Outdoor | 50 | 95% | 328 MJ/h |
| 1307012 | N/G - Indoor | 50 | 95% | 328 MJ/h |
| 1307013 | LPG - Indoor | 50 | 95% | 328 MJ/h |
