Electric · Storage Hot Water Systems
Not designed for commercial use
7 Year Tank
1 Year Parts and Labour
3 Tank
1 Year Parts and Labour
3 Tank
1 Year Parts and Labour
Same footprint when replacing a like for like
unit, saving money on replacement costs
Most affordable unit to purchase
Lower tariffs are often available, which will heat
water during off-peak times
Rates as the highest when it comes to Co2
emissions.
When installed on an off peak tariff, high chance
of running out of hot water during heavy load
days. Water will not be reheated until over night
Same footprint when replacing a like for like unit,
saving money on replacement costs
Most affordable unit to purchase
Lower tariffs are often available, which will heat
water during off-peak times
Rates as the highest when it comes to Co2
emissions.
When installed on an off peak tariff, high chance of
running out of hot water during heavy load days. Water
will not be reheated until over night
Always use a licensed plumber when installing a hot water system.
Electric · Storage Hot Water Systems

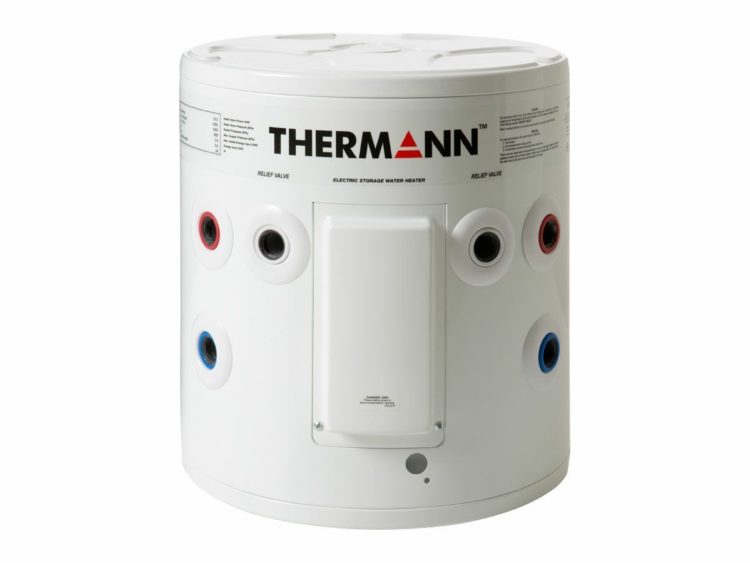

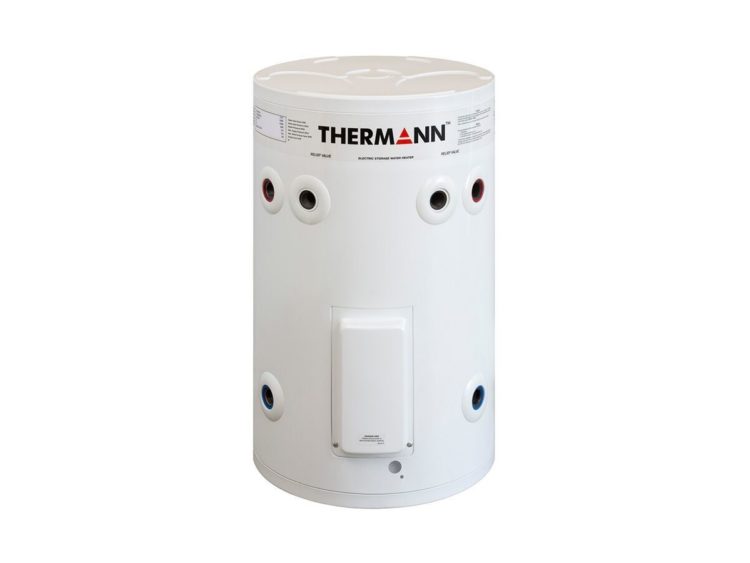

Thermann Small Electric hot water systems allow you to install hot water where space and access is restrictive. With its 'V Fit' configuration, inlets and outlets are configured for ease of installation.
Important Note: The tank must be filled with water prior to connecting to a power source
1. A hot water tap is turned on
2. Hot water is drawn from the top of the
tank
3. Cold water enters through the bottom of the
tank
4. When temp around the element drops, element
activates.
5. Hot water rises to the top of the tank

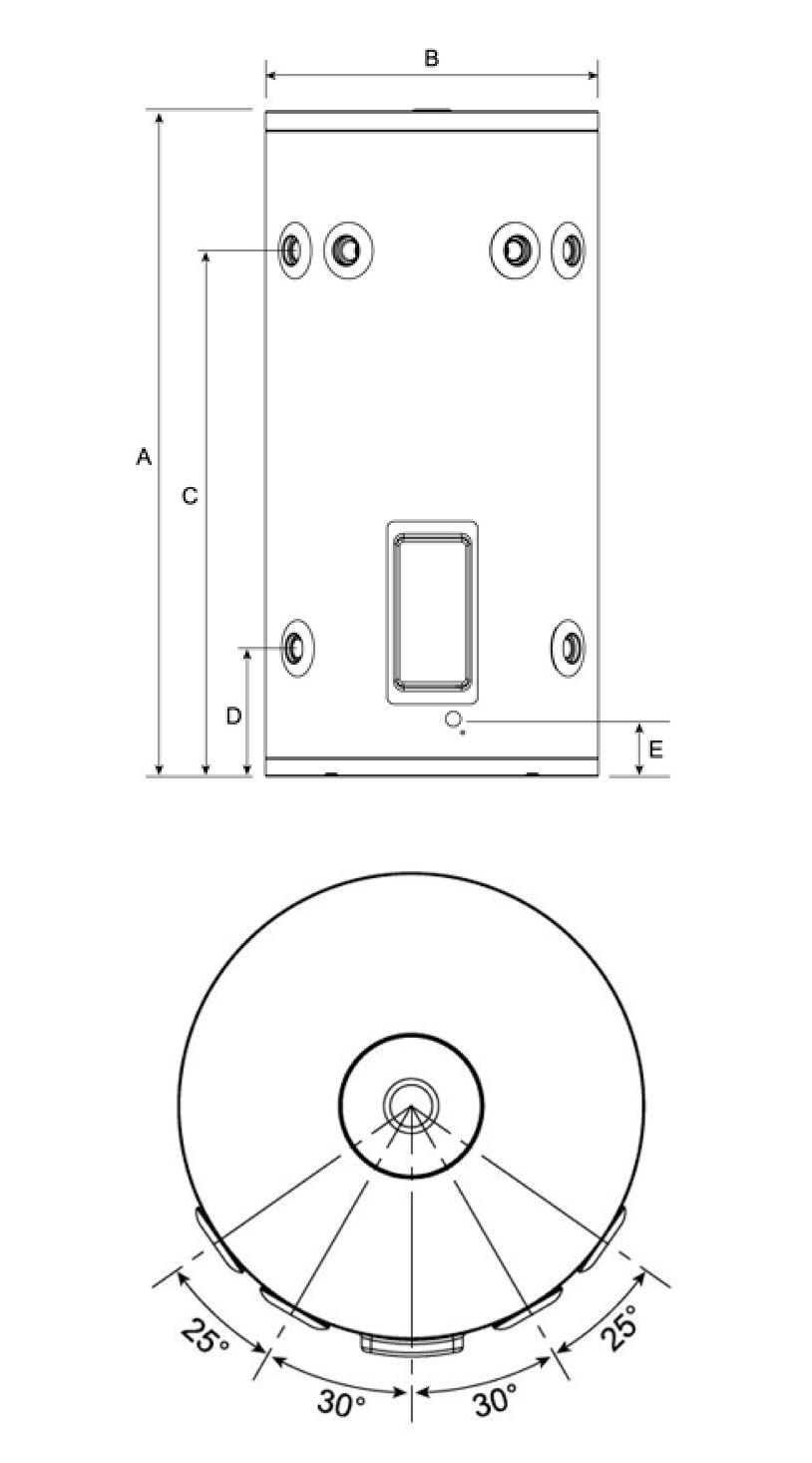

| Measurements | 25L | 50L |
|---|---|---|
| Total Height (A) | 455 | 670 |
| Total Diameter (B) | 405 | 405 |
| Outlet Height (C) | 280 | 490 |
| Inlet Height (D) | 155 | 145 |
| Electrical Entry (E) | 65 | 70 |
| Element Angle (K) | 55° | 55° |
| Storage Capacity (L) | 31 | 50 |
| Hot Water Delivery (L) | 25 | 50 |
| Net Weight Empty (kg) | 17 | 23 |
| Element Sizes (kW) | 2.4*, 3.6 | 2.4*, 3.6 |
| Relief Valve Pressure (kPa) | 1000 | 1000 |
| Max Inlet Pressure | ||
| Without an ECV (kPa) | 800 | 800 |
| With an ECV (kPa) | 650 | 650 |
| Measurements | 25L | 50L |
|---|---|---|
| Inlet/Outlet | Dual Hand | Dual Hand |
| No. People (continuous) | 1 | 1-2 |
| No People (off peak) | 0 | 0 |
| Product code | Number Of People | Number of Elements | Element Size | First Hour Capacity | Boost Capacity |
|---|---|---|---|---|---|
| 9507166 | 1 | - | 3.6 | 25L | - |
| 9507168 | 2 | - | 3.6 | 50L | - |

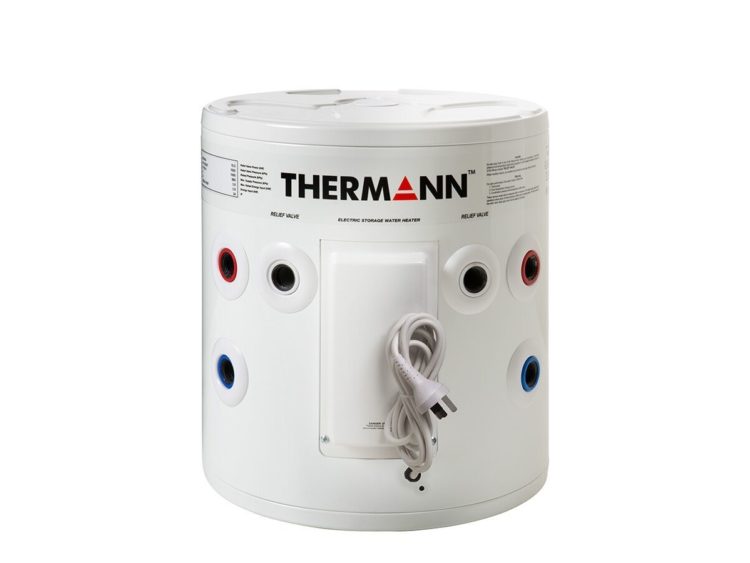

| 9507167 | 1 | - | 2.4 | 25L | - |

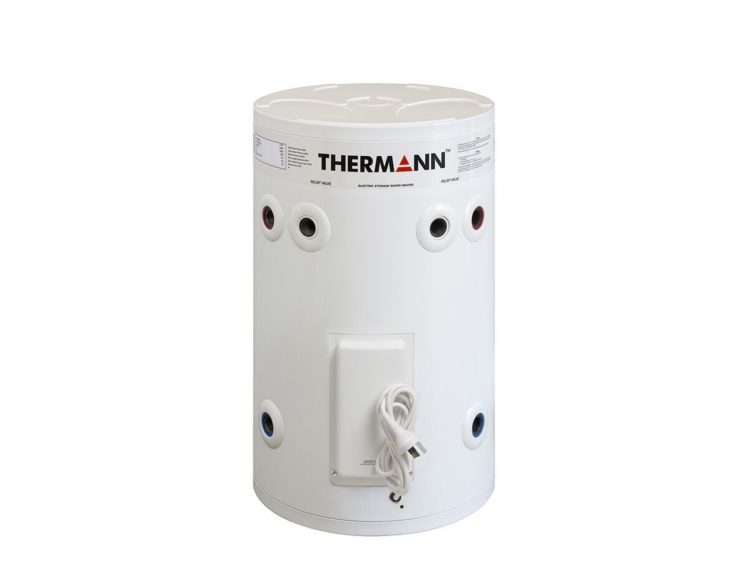

| 9507169 | 2 | - | 2.4 | 50L | - |
